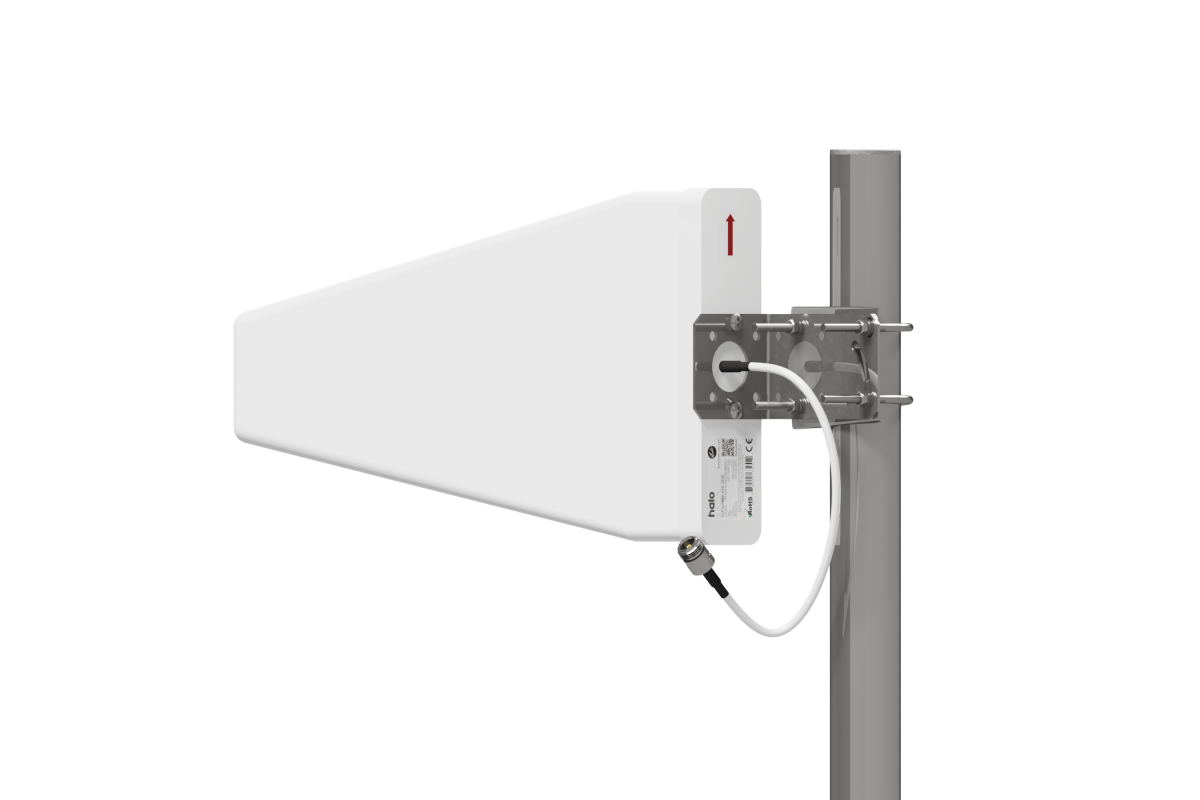

CoFlex1000-5G directional antenna 10dBi

Optimize your internet setup with the CoFlex1000-5G outdoor antenna

In its compact design, the CoFlex1000-5G LogPer directional antenna by Halo&Son combines simple installation, the majority of the global mobile radio frequencies 3G / UMTS / 4G / 4G+ / 5G / LoraWAN / Helium and also offers excellent amplification of 9dB to 10dB. This makes this antenna ideal as an external outdoor antenna for 3G, 4G and 5G routers.

Product Specifications:

• Gain: 9/10dBi
• Frequency range: 698-960MHz / 1710-2700MHz / 3400-3800MHz / LoRaWAN (Helium) EU868MHz / US915MHz
• Applications Supported: GSM / 2G / 3G / 4G / LTE / 5G / 2.4G WiFi / LoRaWAN Helium / 2.4GHz Bluetooth
• VSWR: <1.5
• Polarization: Vertical / -45° / +45° (depending on mounting)
• Jet width: 65° / 60°
• Jet height: 50° / 40°
• Impedance: 50 ohms
• Material : ABS
• Colour: white
• Connector: N-Type Male
• Cable length: 15cm RG58U
• Area of ​​application: outside and inside
• Length / Width / Height: 41cm / 5cm / 21cm
• Scope of delivery: 1x antenna, 2x U-clamps, 1x L-bracket
