4G LTE Outdoor Antenna 10 dBi – Directional Antenna for Routers & Repeaters (CoFlex1000)

Strong connection for weak networks – 4G/LTE directional antenna for outdoor mounting

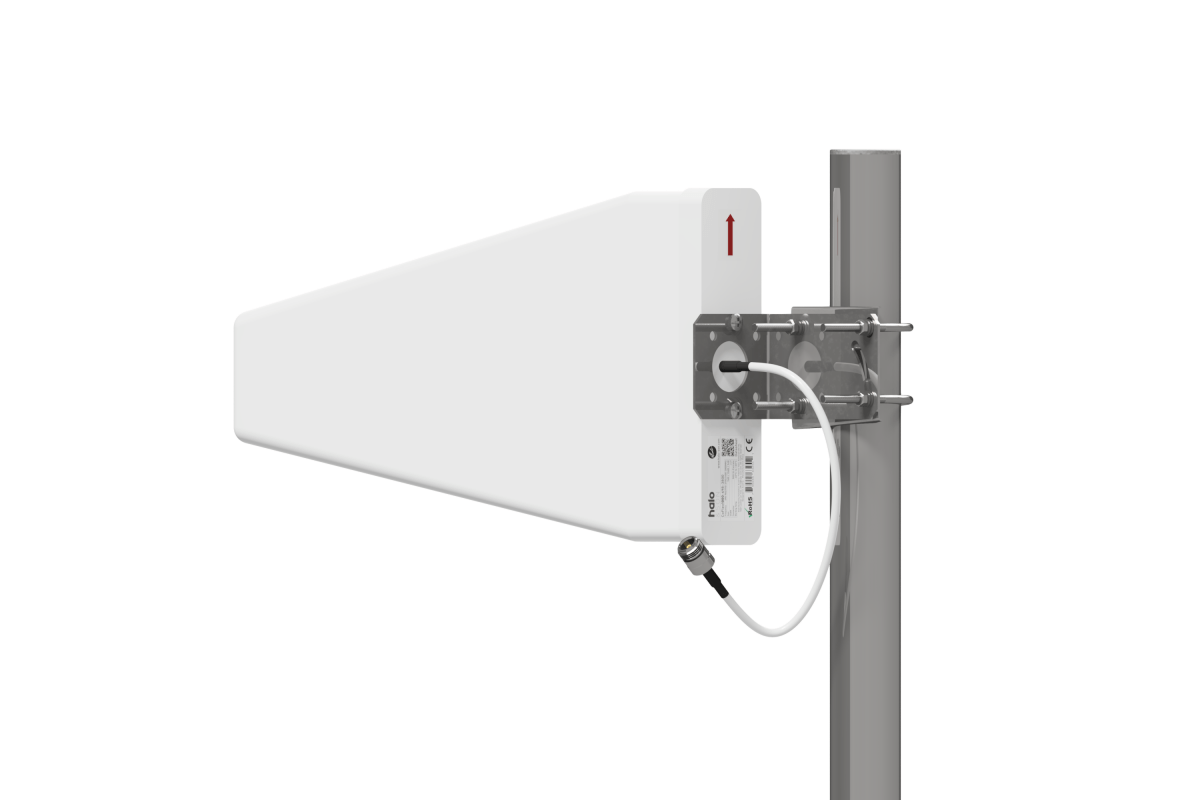

The CoFlex1000-4G outdoor antenna from Halo&Son Austria is your solution for better LTE reception. With up to 10 dBi gain, it delivers stable signal amplification for 4G routers, GSM repeaters, and IoT devices – ideal for rural areas, garden sheds, construction sites, offices, or locations with poor network coverage.

Thanks to its compact log-per-axis directional characteristic, the antenna is perfectly suited for targeted alignment with cell towers. Installation is simple and weatherproof, attaching to a mast or wall.

Product highlights:

• Effective signal amplification: up to 10 dBi gain
• Wide frequency coverage: 698–960 MHz, 1710–2700 MHz
• Supports: GSM, 2G, 3G, 4G, LTE, 2.4G WiFi, Bluetooth
• Polarization: Vertical or ±45° (depending on mounting)
• Robust ABS housing, weatherproof for indoor and outdoor use
• Connector: N-Type socket (female)

Compatible devices:

• 4G/LTE router with external antenna connection (e.g. SMA or TS9 via adapter)
• GSM/LTE repeater
• IoT modules, LoRa gateways, radio systems with 4G module

A notice:

For connecting to a router, we recommend using a high-quality connection cable such as the CoFlex2700-5-SMAM-NM-S-1 (SMA male to N male). The antenna has an N-type socket and requires a connection cable with an N-male connector on the antenna end.

Technical data:

• Gain: 9–10 dBi
• Frequency ranges: 698-960 MHz / 1710-2700 MHz
• VSWR: <1.5
• Beam width: 65° H / 60° V
• Beam height: 50° H / 40° V
• Impedance: 50 ohms
• Material: ABS plastic
• Color: White
• Connection: N-Type Female
• Cable length: 15 cm RG58U pigtail
• Dimensions: 41 cm × 5 cm × 21 cm

Scope of delivery:

• 1× CoFlex1000-4G directional antenna
• 2× U-clamps for mast mounting
• 1× L-bracket for wall or pipe mounting
